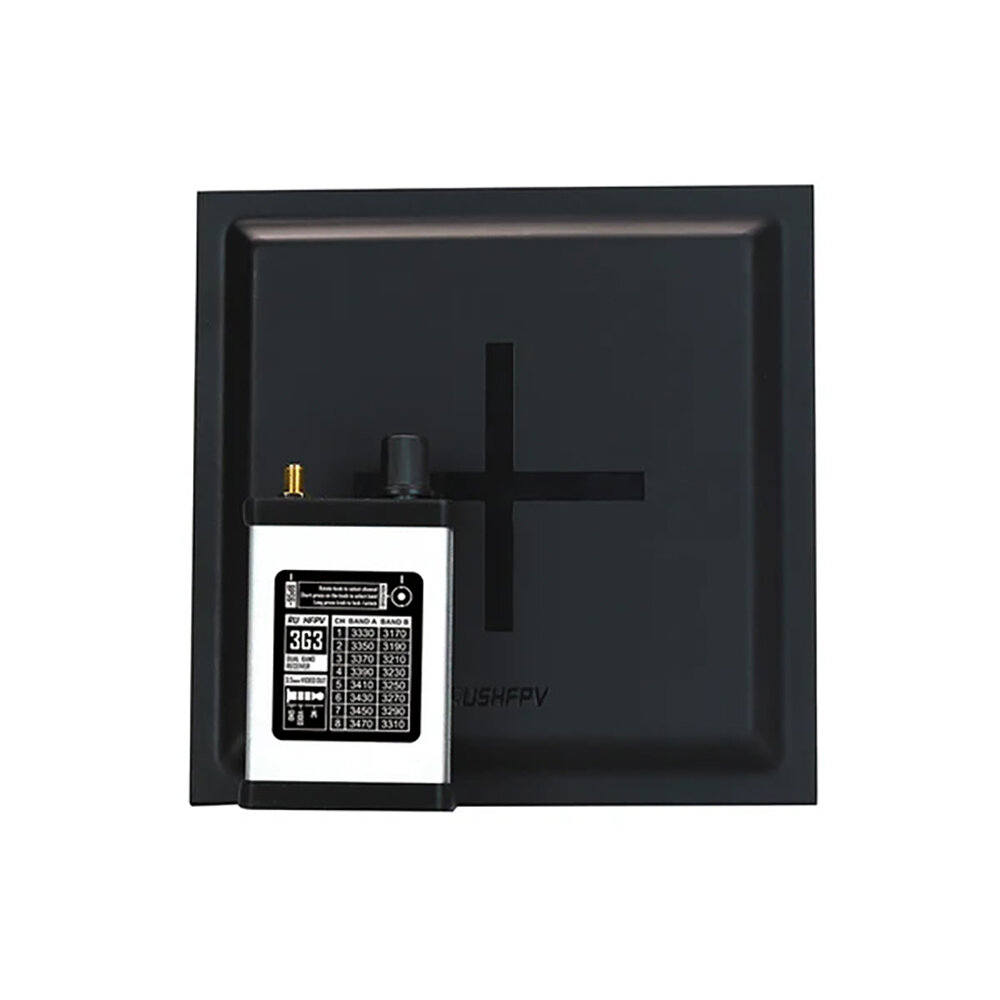

The RUSHFPV 3.3GHz Video Receiver is designed for uncompromising performance and reliability. This state-of-the-art receiver features a customized digital PLL circuit and chip-level integration, ensuring no frequency driftt and exceptional sensitivity up to -95dBm across all channels.

Specifications:


VRX Module:

Video Output:

CVBS NTSC/PAL

Frequency:

BAND-A 3330-3470MHz (8 channels),

BAND-B 3170-3310MHz (8 channels),

Sensitivity: <-95dBm
DVR: CVBS 30fps (Optional)
DC Input:7-30V
Connector: SMA
Dimensions: 58x27x101mm
Weight: 103g

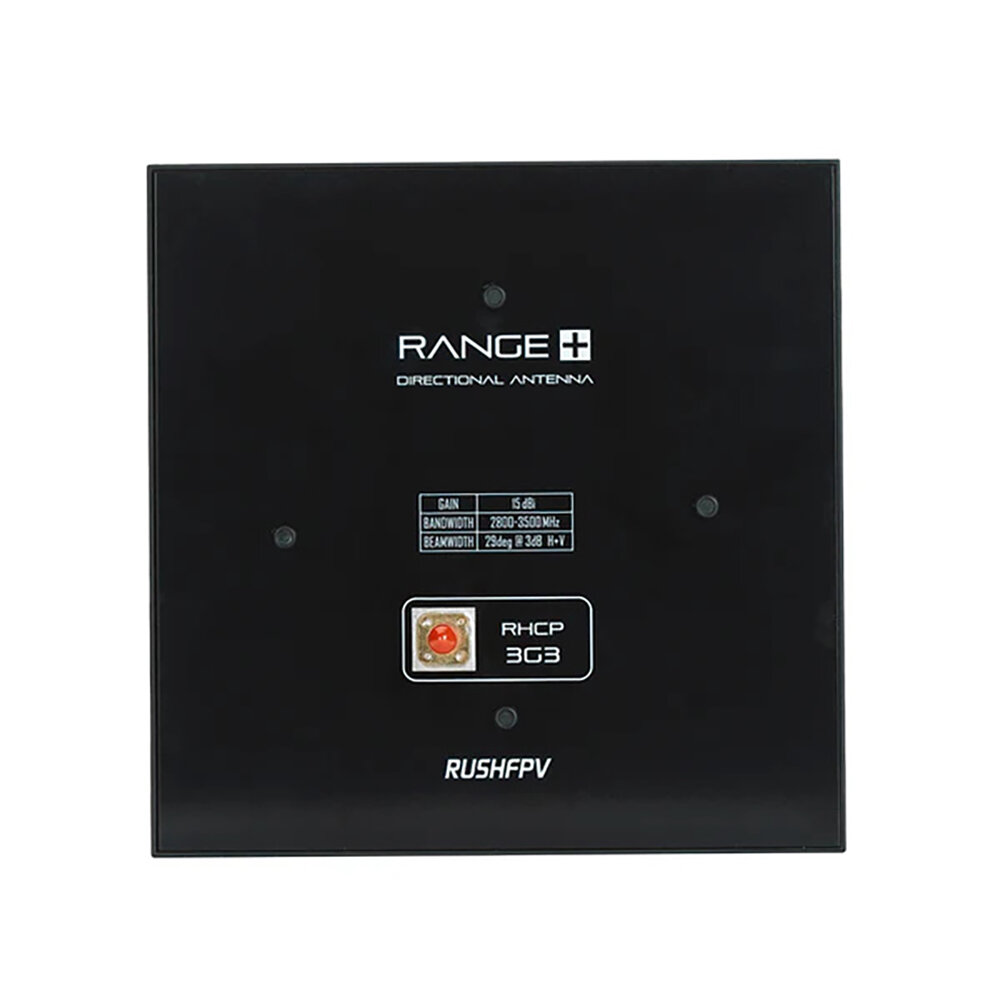

Directional Antenna:


Polarization: LHCP/RHCP
Bandwidth: 3150-3500 MHz
Beamwidth: 29 degrees @3dB H+V
Gain: 15.8 dBi
V.S.W.R: <1.3
Cable: RG178 (Adapter Cable)
Connector: SMA
Dimensions:174x174x16mm
Weight: 196g


VTX Specifications:

Video Input: CVBS NTSC/PAL
Frequency:BAND-A: 3330-3470MHz (8 channels)
BAND-B: 3170-3310MHz (8 channels)
RF Power: >2W
Protocol: IRC Tramp
DC Input:7-30V
Connector: SMA
Dimensions: 40.5 x 26 x 8.5 mm
Weight: 16.5g


VTX Antenna Specifications:


Polarization: RHCP
Bandwidth:A-Band: 3330-3470MHz
B-Band: 3170-3310MHz
Gain: 2dBi
V.S.W.R:<1.5
Cable: RG402 HeavyDutyy
Connector: SMA
Dimensions: 23.6 x 165 mm
Weight: 13g



Key Features:

1.Customized Digital PLL Circuit: Achieve stable, driftfree performance with our high-integration chip design.
2.Optional Built-in DVR Module: Recordd your flights effortlessly with the optional CVBS 30fps DVR.
3.Rugged Aluminum Alloyy Housing: Tough construction with digital display and easy-to-use knob.
4.High-Gain Directional Antenna: The multi-unit antenna provides a narrow beam angle and an impressive 15.8 dBi gain.
5.Complete Quality Control: Thorough QC for all VRX and antenna production ensures top-notch reliability.


Package Included:

1x 3.3GHz Video Receiver
1x 15.8 dBi Patch Receiving Antenna

or

1 x 3.3G 2W Video Transmitter
1 x Circular Polarized Antenna

1x 3.3GHz Video Receiver
1x 15.8 dBi Patch Receiving Antenna
